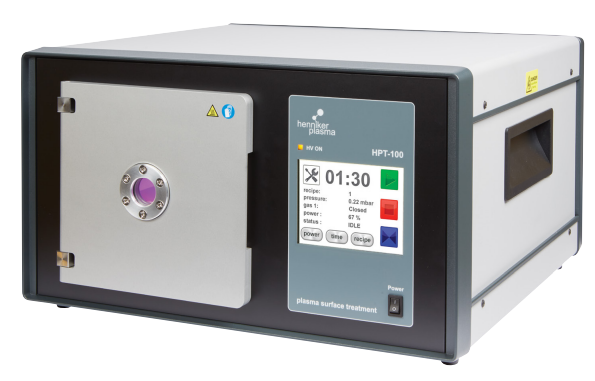

HPT-100 & HPT-200
The HPT-100 & HPT-200 are microprocessor controlled benchtop plasma treatment systems that are ideally suited to surface activation, cleaning and modification of a wide range of materials including polymers, metals, glass and ceramics.
Available in fixed, single, or dual gas inlet versions and with onboard gas mixing manifold, the HPT-100/200 systems are able to handle a wide range of gases for optimised treatments, including air, oxygen, hydrogen, argon, nitrogen and many others.
An optional vapour delivery inlet extends the use to liquid precursors and a corrosion-resistant version expands the choice even further to address specific material treatments including;
- Plasma cleaning
- Plasma surface activation to improve adhesion
- Functional plasma coatings
- Plasma etching
- PDMS & microfluidic devices
- PEEK & other engineering polymers
- PTFE
- Metals
- Ceramics
- Glass & optical devices
Process Results
TFT Colour touchscreen
Each system is supplied with a 5.7-inch colour touchscreen which provides a rich, user-friendly interface. Variables such as gas flow rate, pressure, power level and plasma processing time can be freely set and then stored to produce a fully interlocked process cycle from a single keypress. A handy status display and end of process audible alarm informs the user of every step in the process.
Plasma Cleaning Example
- Material : HDPE
- Air plasma
- 90 seconds
Before plasma treatment
After plasma treatmentPlasma Environment
Vacuum chamber & power

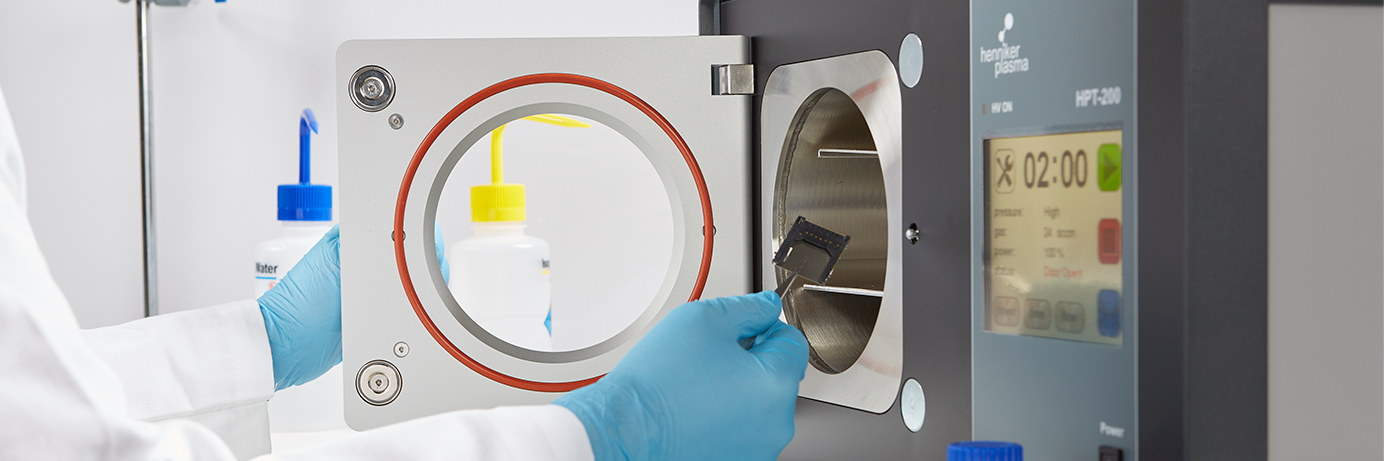

The HPT-100 system features a 100mm diameter plasma process chamber in stainless steel with vacuum compatible materials throughout.
The HPT-200 features a larger capacity 150mm diameter plasma process chamber to accomodate more samples or larger samples.
Henniker's proprietary, high stability HPS plasma generator is continuously variable over the entire 0-100W/0-200W power range rather than being limited to discreet levels, delivering much finer control when processing delicate materials.
Benefits
Versatility
Repeatable and Reliable
With precision flow control and integrated pressure gauge, the 100 & 200 models deliver unmatched reliability & repeatability by removing common errors in gas flow and gas type settings which will be familiar to users of equivalent equipment that utilise manual needle valves.
Benefits
|
|
Specifications
| Technical Specifications |
||||||
| HPT-100 / HPT-200 Plasma Treatment Systems | ||||||
| ENCLOSURE | ||||||
| Dimensions | HPT-100 / HPT-200 - W 520mm x H 286mm x L 550mm (+50mm on rear for cables) | |||||
| Weight |
HPT-100 - ~22kg HPT-200 - ~23kg |
|||||
| CHAMBER | ||||||
| Material | Stainless Steel | |||||
| Form | Cylindrical | |||||
| Dimensions |
HPT-100 - 100mm dia. x 280mm L HPT-200 - 150mm dia. x 280mm L |
|||||
| REMOVABLE PARTS CARRIER | ||||||
| Material | Aluminium | |||||
| Material options | Stainless steel | |||||
| Form | Flat tray | |||||
| Form options | Perforated tray, others to suit application | |||||
| Dimensions |
HPT-100 - 90mm W x 255mm L, others to suit application HPT-200 - 135mm W x 255mm L, others to suit application |
|||||
| PLASMA POWER SUPPLY | ||||||
| Power |
HPT-100 - 0-100W, continuously variable output HPT-200 - 0-200W, continuously variable output |
|||||
| Frequency | 40 kHz | |||||
| PROCESS CONTROL | ||||||
| Interface | 5.7” Colour TFT with recipe store | |||||
| Gas channel options | Fixed, x1 MFC or x2 MFC and x1 vapour inlet options | |||||
| Vent inlet | x1 | |||||
| Vent inlet options | soft ventilation option | |||||
| Connections | 6mm compression or 1/4" compression | |||||
| Process timer | 1sec – 99.59min | |||||
| Recipe Store |
Stores up to 4 x recipes - with individual parameters | |||||
| Pressure gauge | Pirani sensor | |||||
| Vacuum pump | 3 to 6 m3/hr pumping speed | |||||
| Vacuum pump options | 2-stage rotary pump (air/inert gas), PFPE rotary pump (oxygen compatible), dry pumps. All pumps include exhaust filter and connections | |||||
| SERVICES | ||||||
| Electrical | 90-250 VAC, 50-60Hz, 1200-1500 VA (including pump), fused 6.3 A T / 10 A T | |||||
| Power cord | Suited to region | |||||
| Compliance | CE – UKCA - ROHS - WEEE | |||||
|
**Henniker strive for continuous improvement and specifications are subject to change without notice |
||||||
