Nova
The Nova Advanced Benchtop Plasma System delivers industrial-grade plasma performance in a compact format, combining PLC automation, recipe-driven control, and full process traceability.
Engineered for research and development teams, Nova enables fast, repeatable plasma cleaning, activation, and surface modification across a wide range of materials - including polymers, metals, ceramics, and glass.
Developed from Henniker’s production-scale Nebula Plasma System, Nova bridges the gap between laboratory R&D and full industrial processing, ensuring seamless transfer of validated plasma processes to manufacturing environments.
Features
- Compact benchtop design with full industrial PLC control
- Automated, recipe-driven operation for consistent, repeatable results
- Compatible with multiple process gases and materials
- Ideal bridge between R&D, pilot production, and Nebula production systems
- Precise, repeatable plasma processes with no hazardous emissions or wet chemicals
- Data logging and process traceability for research validation and quality assurance
Process Control
Portals Software

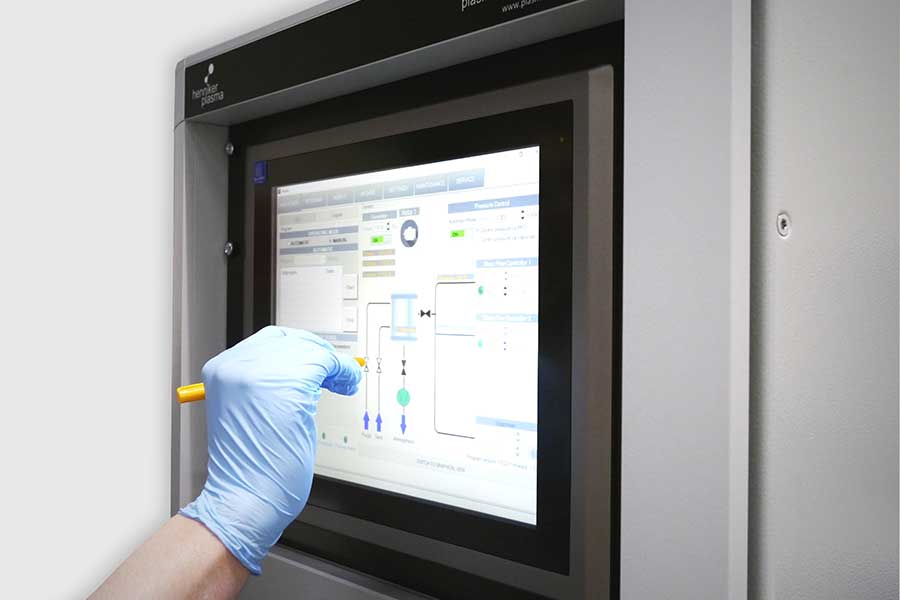

The Nova Advanced Benchtop Plasma System is powered by Henniker’s Portals Software, a sophisticated control application developed for precision, consistency, and scalability.
Accessible via touchscreen HMI or PC interface, Portals provides PLC-driven recipe control with unlimited process storage. Operators can easily define treatment parameters such as gas type, power, pressure, and time - all with repeatable accuracy.
Plasma Cleaning Example:
- Material: Polycarbonate
- Air Plasma
- 90 second treatment
Results: Surface Energy increased by +45% and Contact Angle deacreased by -57%.

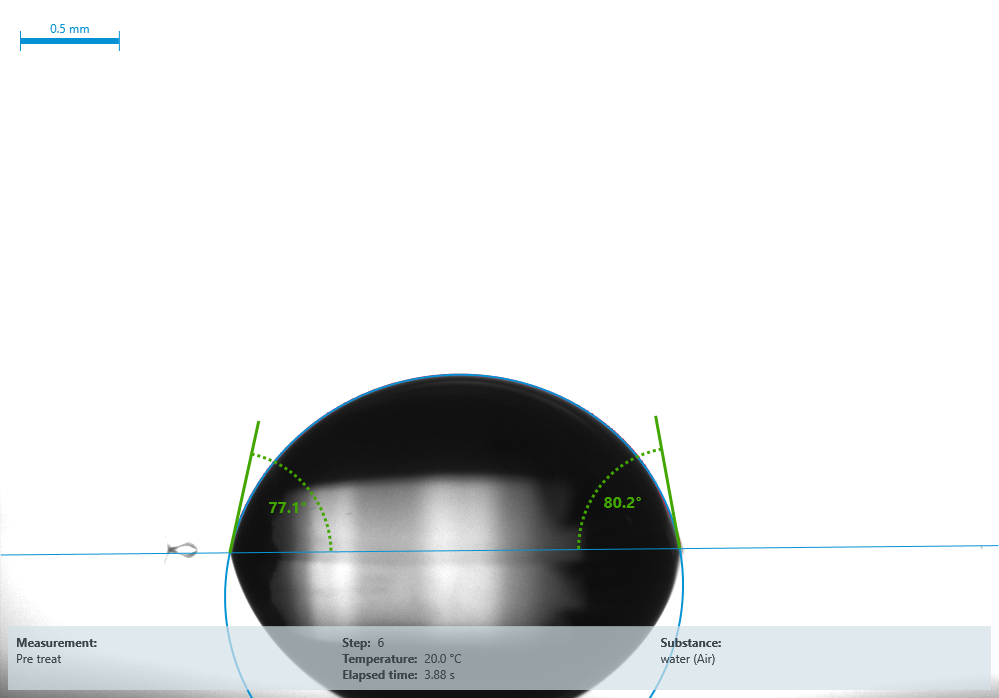

Before plasma treatment

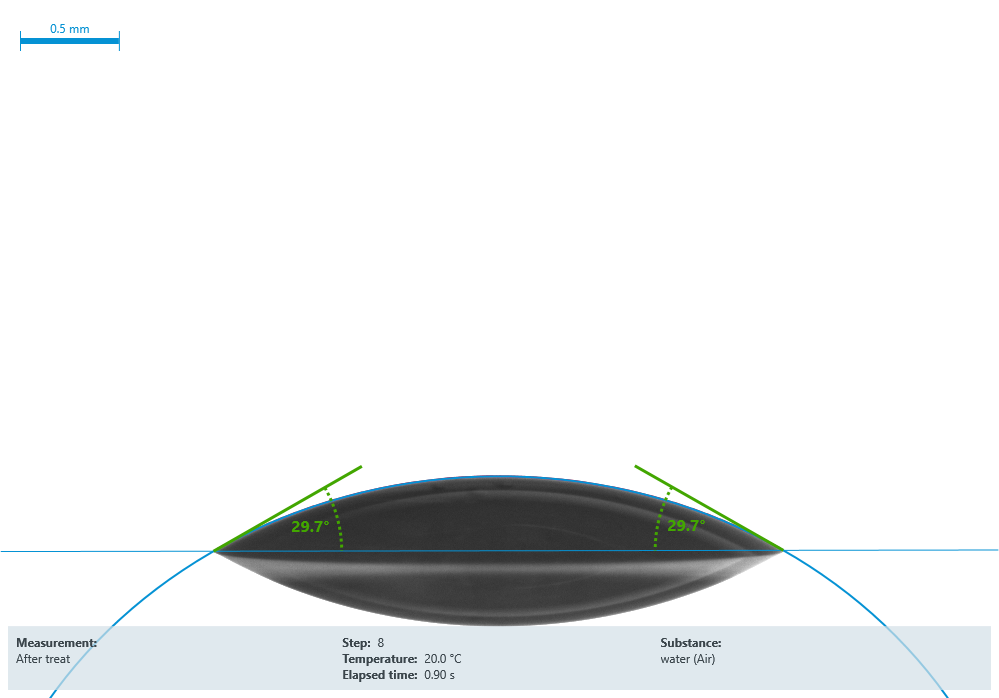

After plasma treatmentPlasma Environment

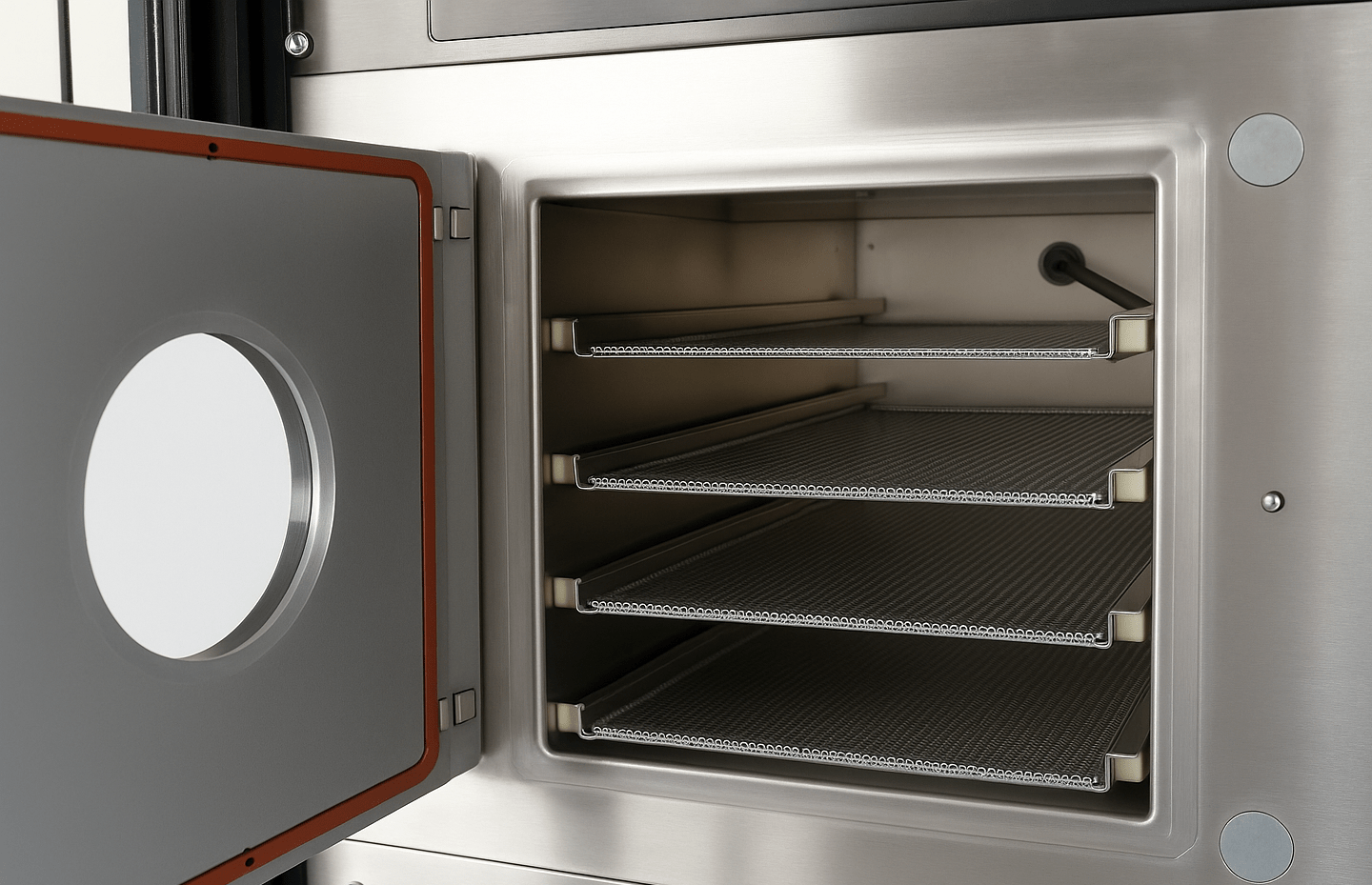

Vacuum chamber & power
Nova provides a high-purity, low-pressure plasma environment, ensuring uniform surface treatment across the entire chamber. The system supports a wide range of process gases (including oxygen, air, argon, nitrogen, and fluorocarbons), enabling cleaning, activation, and modification of polymers, metals, ceramics, and glass substrates.
Benefits
Benefits
- Compact footprint: Advanced performance in a benchtop format
- Industrial-grade control: Full PLC automation for repeatable precision
- Process scalability: Seamless transfer to Nebula production systems
- Data traceability: Secure recording of parameters and results for research or QA
- Material versatility: Treats polymers, metals, ceramics, and glass
- No hazardous chemicals: Clean, dry plasma process with zero waste streams
- Ideal for R&D and pilot production: Bridges laboratory research with industrial capability
Specifications
| Technical Specifications | ||||||
| Nova |
||||||
| ENCLOSURE | ||||||
| Dimensions | W 555mm x H 770mm x L 600mm (+200mm on rear for cables) (+80mm on side for monomer inlet) | |||||
| Weight | ~55kg depending on model | |||||
| CHAMBER | ||||||
| Material | Stainless Steel | |||||
| Form | Rectangular | |||||
| Dimensions |
240mm W x 240mm H x 405mm L |
|||||
| REMOVABLE PARTS CARRIER | ||||||
| Material | Aluminium/Stainless steel | |||||
| Form | Flat tray (200mm W x 370mm L) / Multi-level shelf electrode optional, others to suit application. | |||||
| PLASMA POWER SUPPLY | ||||||
| Power | 0-1000W, continuously variable output | |||||
| PROCESS CONTROL | ||||||
| Interface | 15” Colour TFT, Windows 11, PLC Control - Unlimited steps/recipes with user access privileges | |||||
| Gas channels | 1-3 Digital Mass Flow Controllers - monomer dosing inlet optional | |||||
| Vent inlet | x1 | |||||
| Vent inlet options | soft ventilation option | |||||
| Purge inlet | x1 | |||||
| Connections | 6mm compression or 1/4 compression optional | |||||
| Pressure gauge | Pirani sensor or Baratron gauge | |||||
| Vacuum pump | 8 to 15 m3/hr pumping speed | |||||
| Vacuum pump options | 2-stage rotary pump (air/inert gas), PFPE rotary pump (oxygen compatible), dry pumps. All pumps include exhaust filter and connections | |||||
| SERVICES | ||||||
| Electrical | 90-120 VAC/1.6kVA or, 220-240VAC/1.6KVA Frequency - 50-60Hz | |||||
| Power cord | Suited to region | |||||
| Compliance | CE – UKCA - ROHS - WEEE | |||||
|
**Henniker strive for continuous improvement and specifications are subject to change without notice |
||||||
